Creating Connections

The Connection defines list values the credential must have

For example

Database connection

1. host name
2. port
3. database name
4. user name
5. password

Database credential

1. host name = some-code
2. port = 1534
3. database name = sales
4. user name = john
5. password = fjwlfmw1

List of connection properties is user definable

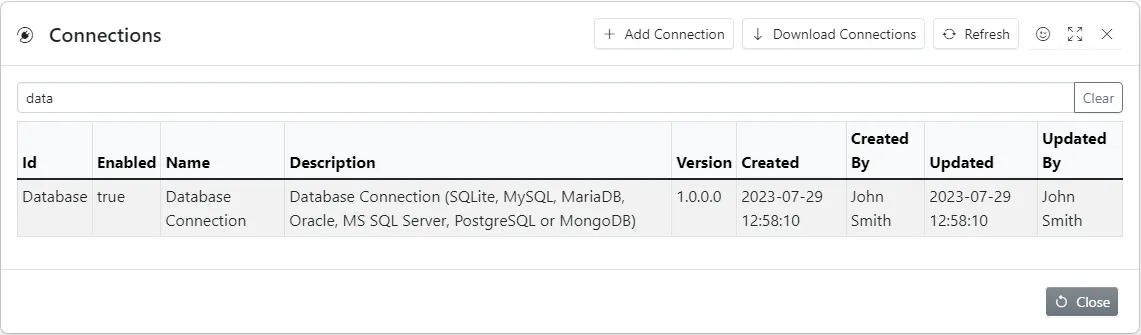

Connections List

This dialog allows to create new credentials or download credentials the from public library

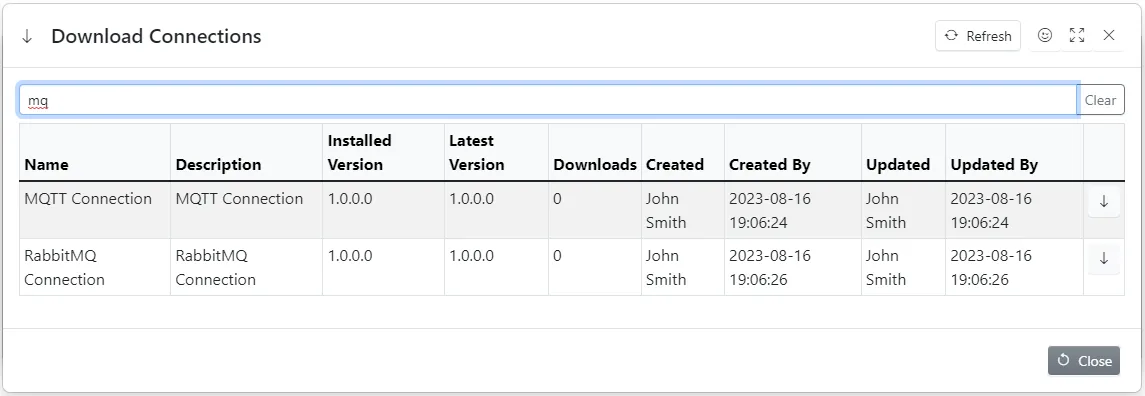

Download Connection

Creating New Connection

To create new connection click Add Connection, fill in all necessary fields and press Save button

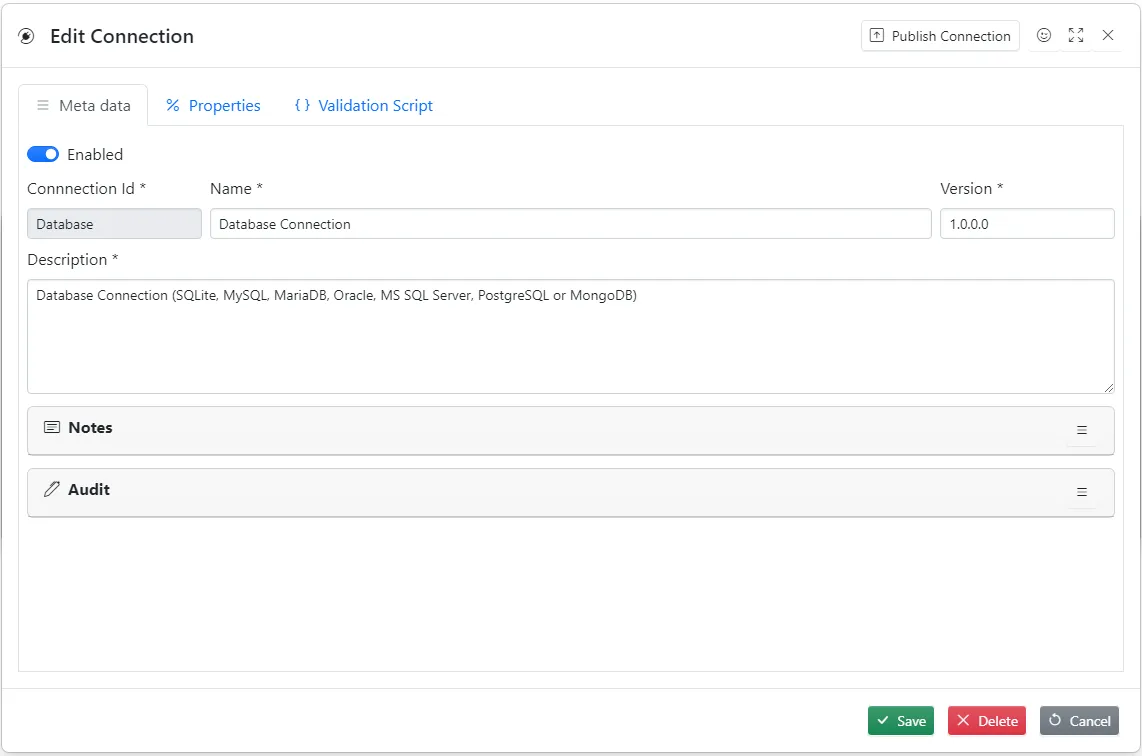

Metadata Tab

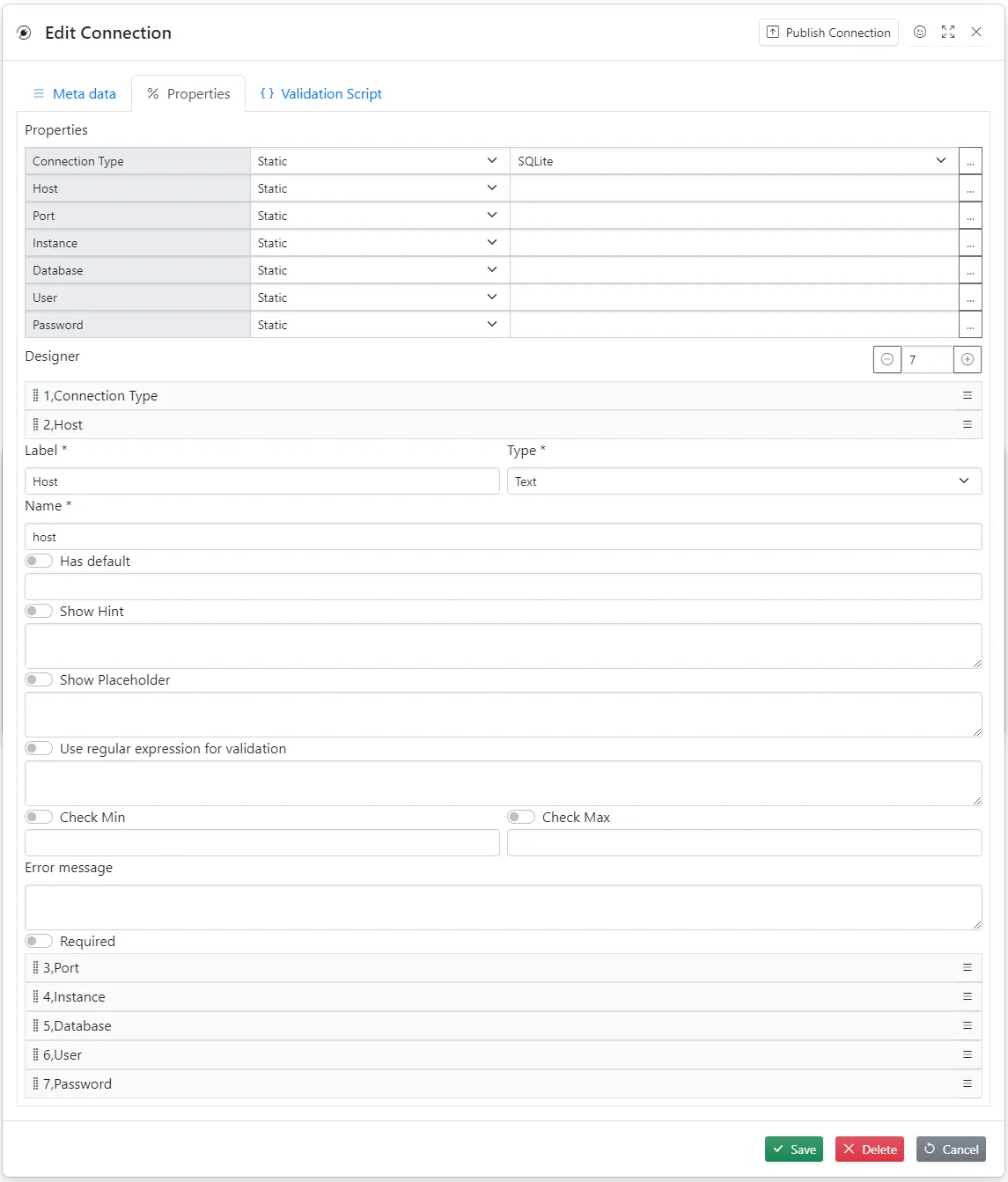

Properties Tab

• To add new property click plus
• Properties can be rearranged using drag and drop
• Always use password type for password parameters
• It is extremely important to select correct property type

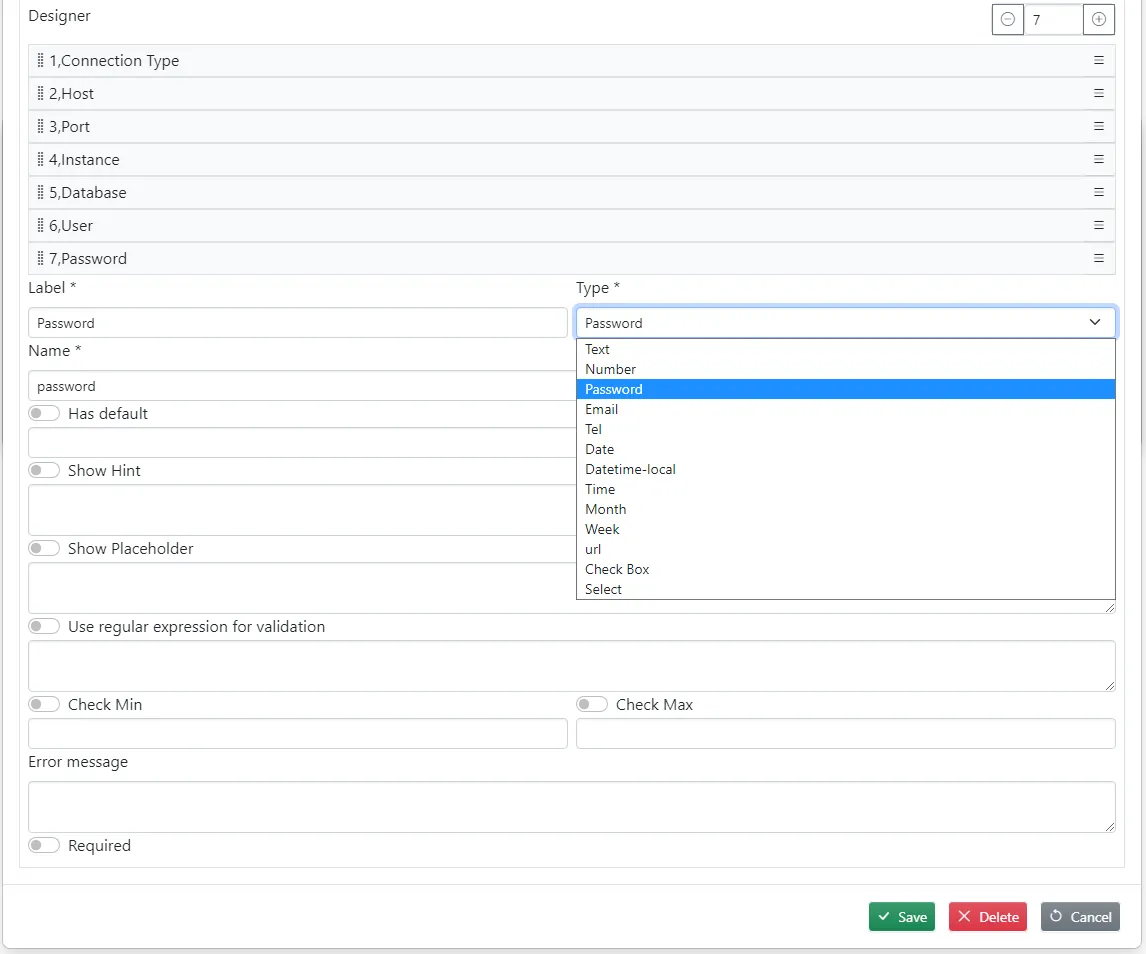

Property types

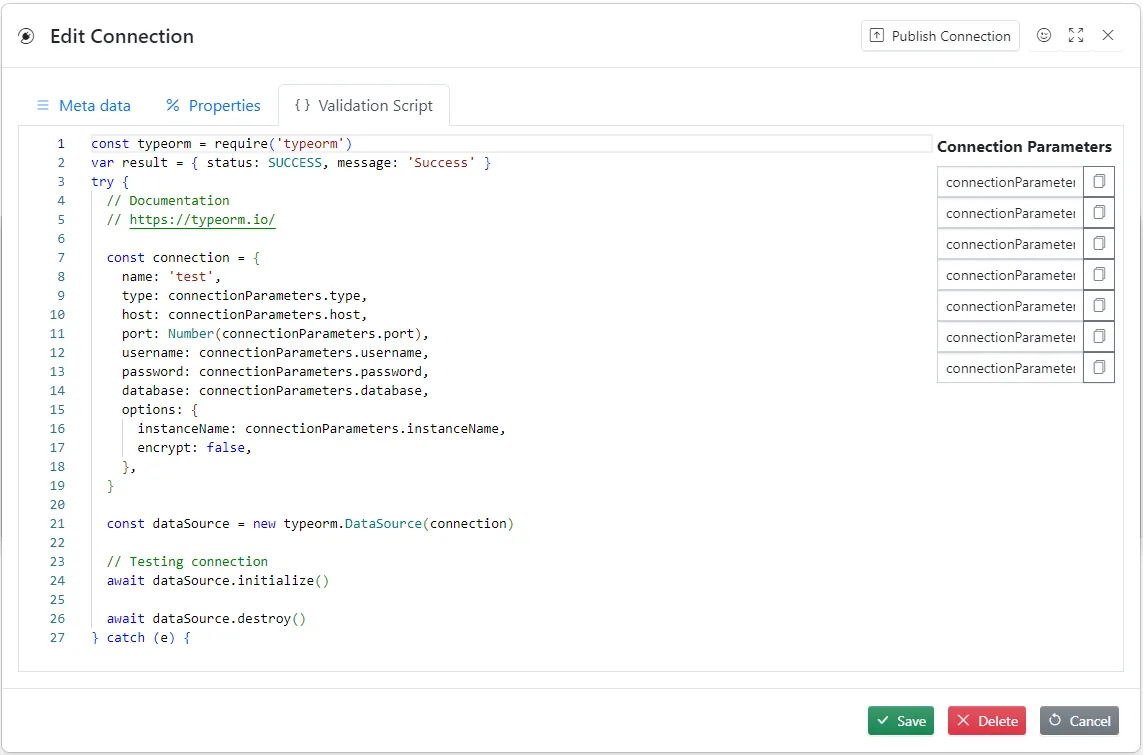

Validation Script Tab

Validation Script Example

const typeorm = require("typeorm");
var result = { status: SUCCESS, message: "Success" };
try {
  // Documentation
  // https://typeorm.io/

  const connection = {
    name: "test",
    type: connectionParameters.type,
    host: connectionParameters.host,
    port: Number(connectionParameters.port),
    username: connectionParameters.username,
    password: connectionParameters.password,
    database: connectionParameters.database,
    options: {
      instanceName: connectionParameters.instanceName,
      encrypt: false,
    },
  };

  const dataSource = new typeorm.DataSource(connection);

  // Testing connection
  await dataSource.initialize();

  await dataSource.destroy();
} catch (e) {
  result.status = ERROR;
  result.message = e.message;
}

return result;

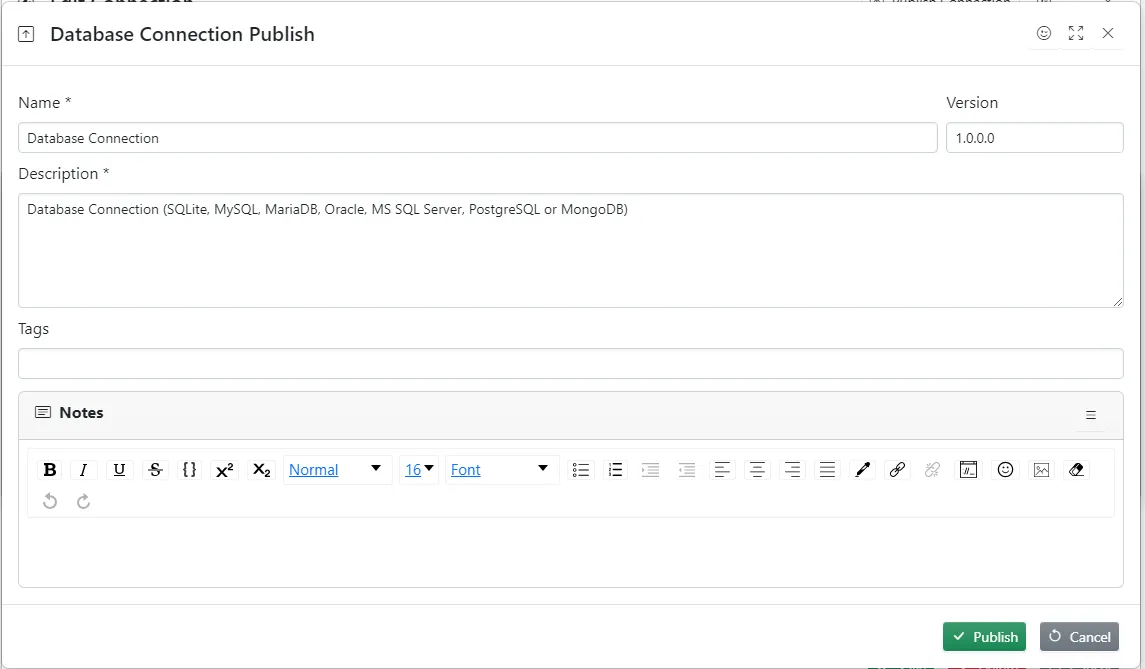

Publish Connection

This dialogue publishes connection to the public library so it can be used by all users of Some code

19 July 2023
